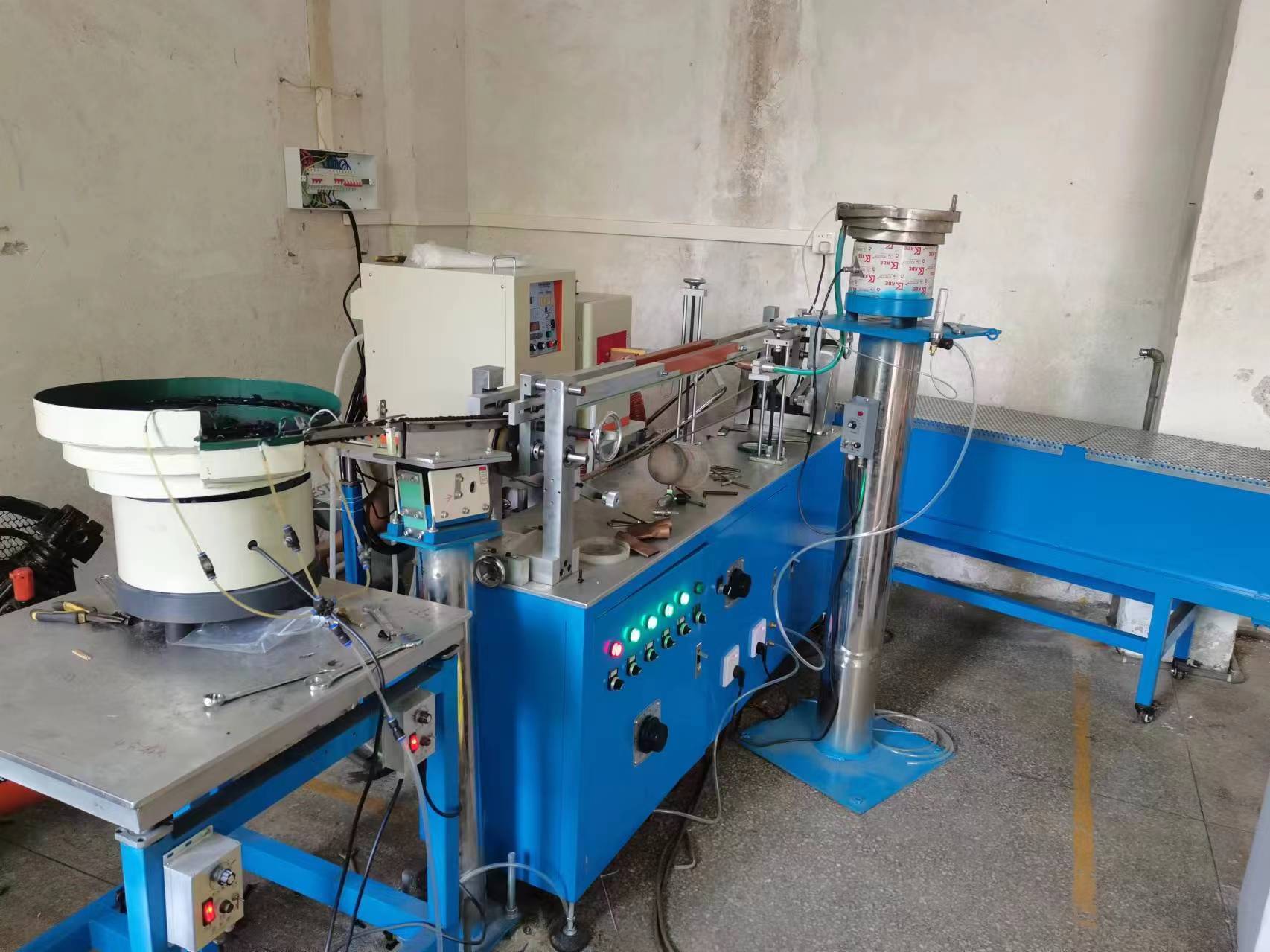

Screw anti loosening glue coating machine
Product Description
This is a machine that applies sealing glue to fasteners such as threaded screws and joint threads.
The thread glue dispenser is used to apply glue to the threads, so that the screws can be resistant to loosening. It has high working efficiency, uniform glue application and good sealing effect.
Techinical Parameters:
| brand | Tai Hong |
| Model | TH-001 |
| Max. Blank Diameter | M1-M36 |
| Max. Blank Length | 3mm-200mm |
| Speed | 10000-40000 pieces/hour |
| Power | 10KW-20KW |
| Applicable Voltage | 220V-380V |
Automated and precise gluing of screw anti-loosening gluing equipment
Core gluing is the "heart" of the entire production process. Through three consecutive steps of feeding and conveying, positioning and clamping, and dynamic gluing, a uniform glue layer coverage on the surface of the screw is achieved.
Feeding and conveying rely on an intelligent material handling system: the pre-treated screws are conveyed to the dividing mechanism by a conveyor belt, and the disordered screws are arranged into an orderly arrangement with equal spacing by rotating the dividing plate (the spacing between adjacent screws is 1.5 times the length of the screw to avoid collision). For long screws longer than 50mm, the equipment will enable a double-pivot conveying device and set support wheels at both ends of the screw to prevent positioning deviations caused by sagging due to self-weight.
FAQ
Q1. What is your terms of packing?
A:Generally, we will first wrap the goods with a protective film, and then choose the appropriate packaging service according to the product specifications.
Q2. What is your terms of payment?
A:T/T30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.
Q3. what is your terms of delivery?
A:EXW, FOB, CIF
Q4.How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment.The specific delivery time dependson the items and the quantity of your order.
Q5.Do you support personal customized services?
A: Yes, We can formulate a product suitable for you according to the specifications and parameters you give us.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
